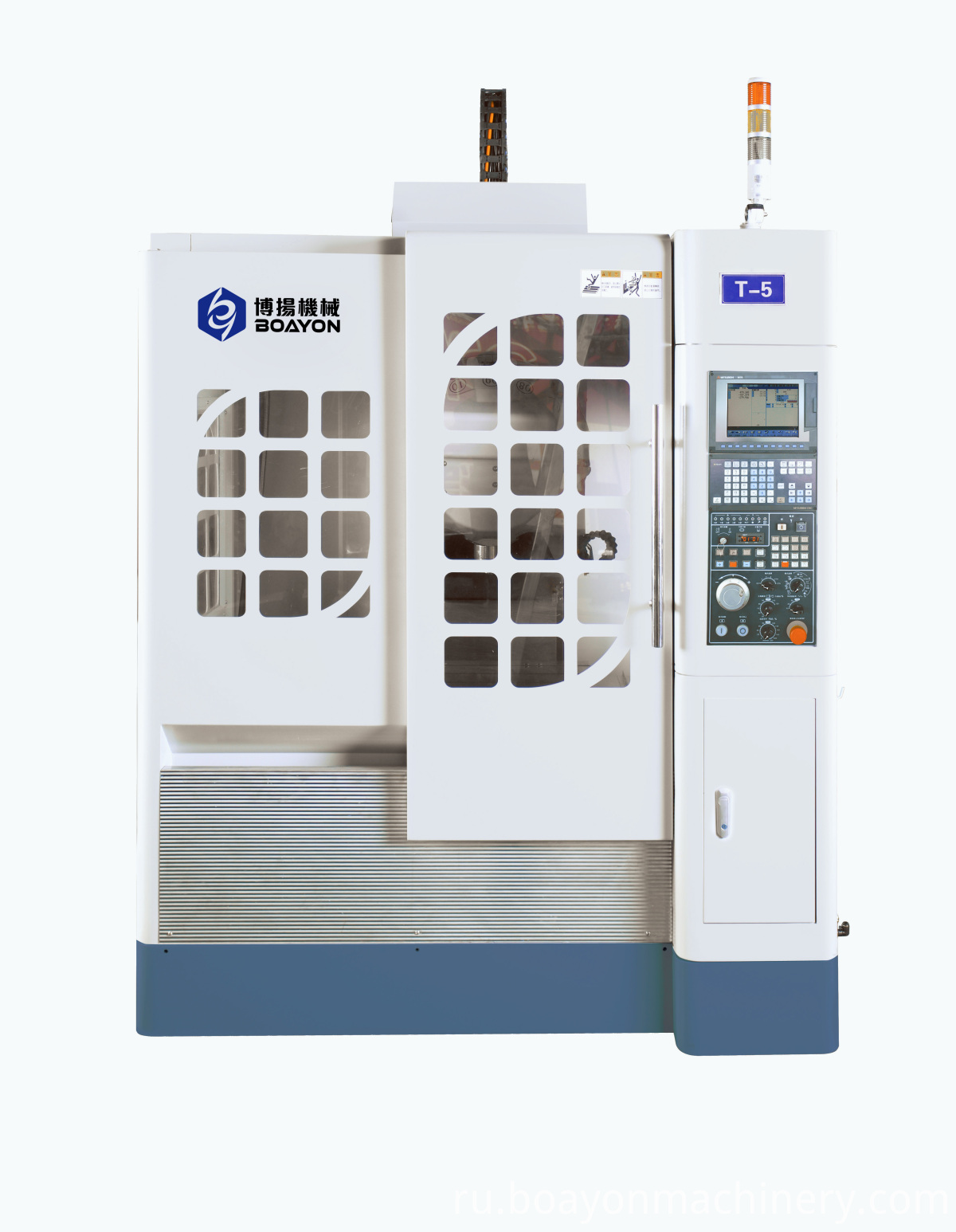

CNC Vertical Machining Center
| Вид оплаты: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF |
Базовая информация
Модель: T-5
Обработка аксессуаров: Токарный станок с ЧПУ
Направляющая: Наклонная направляющая
Источник питания: электрический
Режим управления: CNC
Автоматический класс: автоматическая
Режим настройки: Напольный
точность: точность
сертификация: ISO 9001
Состояние: новый
Warranty: 12 Monthes
Machine Type: CNC Lathe
Place Of Origin: Jiang Su(China)
Тип: Вертикальный токарный станок
Additional Info
Подробности Упаковки: To Be Specified
транспорт: Ocean
Место происхождения: China
Сертификаты : ISO 9001, CE
Описание продукта
Product description:
This series of machine is high-Precisly machining centre which adopt the high-speed& high-precision spindle.High-precision gear cutting tools and drilling and tapping give us accurate positioning and efficient transmission.T Slot Cutter Dimensions is 14×3×100mm,Stable structure,ensure the stability of machine tool for long use.
Features:
1. Adopting the high-speed& high-precision spindle(8000/12000RPM).
2. Stable internal mechanical structure and excellent processing function.
3. Suit for processing auto parts and communication aluminium alloy cavity
4. Ultra high-speed/high performance/high-precision drilling and tapping.
5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.
6. Long traverse length,satisfies different processing needs on a large scale.
7. High strength cast iron for fuselage and main components.
Main Specifications:
Table Worktable area 650×400mm
T-slot size 14×3×100mm
T-slot accuracy grade H7
Max. table load 220kg
Travel X axis travel 500mm
Y axis travel 400mm
Z axis travel 350mm
Spindle nose to worktable surface 170-520mm
Spindle center to column 450mm
Spindle/Feed Spindle transmission Method Belt type
Spindle speed 20-15000-20000 rpm
Spindle taper /Latin specification BT-30/(MAS403-BT30)
Spindle bore/Latin specification Φ100/(MAS403-45)
Cutting feedrate(X/Y/Z) 1~20000mm/min
Rapid feedrate(X/Y/Z) X:60000/Y:60000/Z:60000 mm/min
Accuracy Positioning accuracy 300mm±0.005
Position repeatability 300mm±0.003
ATC ATC type Cutter arm type
Tool changer method Random
Tool magazine capacity 16 T
Tool change time T to T1.6-1.8 sec
Max.tool diameter(full) 80mm
Max.tool diameter(W/O adjacent tools) 100mm
Max.tool weight 2KG
Max.tool length 150mm
Группа Продуктов : Обрабатывающий центр
